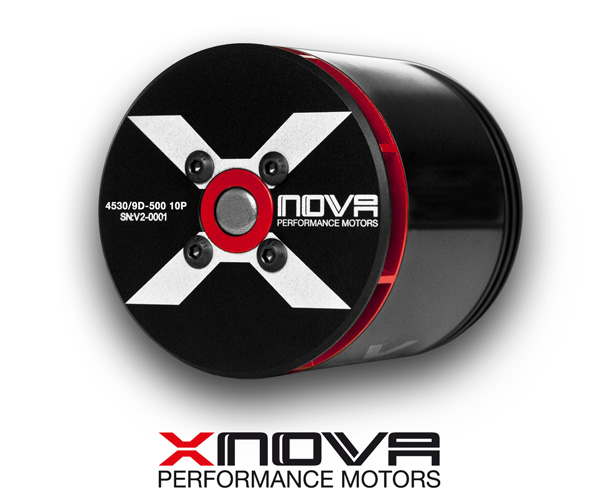

Xnova 4530-500KV 8D Var.A

Artikelnummer: Xnova 4530-500A

Xnova 4530-500KV 8D Var.A

Dieser Artikel ist nicht auf Lager und muss erst nachbestellt werden.

Xnova 4530-500KV 8D Var.A


Designed for 12S hard 3D 700-800mm helicopter where highest power to weight ratio is important. Perfect fit  Logo 700, Goblin 700.

Variante A


Slots & Poles 12n10p
Winding T 8D
rpm/V 500
Volt (V) 10 | 20 | 30 | 40
Io(A) 1.8 | 2.4 | 3.3 | 4.1
Rm (mohm) 10 | 10 | 10 | 10
Weight (without connector) (g) 535
Body Length (no shaft) mm 60.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) | 38 | 27
Shaft Dia. (mm) 6 | 8 | 10
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 42.43 | 69.28 | 99.50 | 128.06
Max Eff. 91.51 | 93.07 | 93.37 | 93.60
Kt (Nm/A 191
Km (Nm/sqrt(w)) 0.191
Max Continuous Power(Watts) 5000
Peak Continuous Power(Watts) (5 sec) 10000 (2sec)
Max cont. current (A) 120
