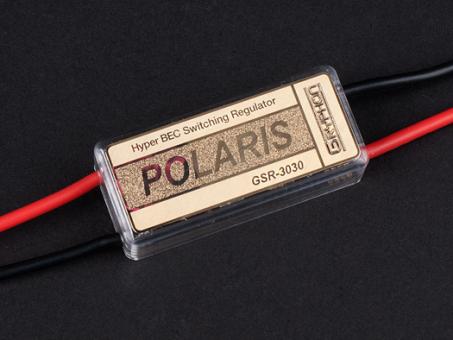

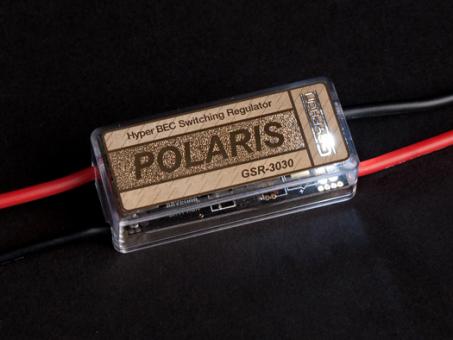

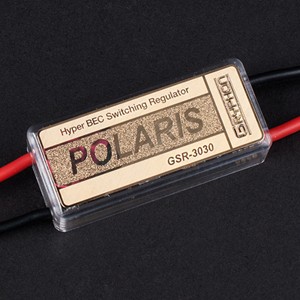

The Gryphon Polaris GSR-3030

is a compact and lightweight BEC system for small RC models.

It's light weight and compact size allow an installation in narrow environments, and will suit perfectly Helicopters(450,500,550 class), Multicopters, Planes, Cars...
Please pay attention to the fact that the output current will depend on the input voltage on the unit,  so make sure to perform preleminary tests on a secured workbench and install the Polaris BEC so that a sufficient airflow allows a proper cooling of the BEC if this is necessary

■TECHNICAL SPECIFICATIONS

Input voltage : 11.1V~30V(3~7 LiPo Cells)
Output voltage : 5.6V, 6.0V, 6.8V, 7.4V Selectable
Output current : 10A(Max Peak),
5A(Continuous) @ 22.2V
7A(Continuous) @ 11.1V
Size : 9mm(H) x 15mm(W) x 34mm(L)
Weight : 7g (exc. Cables)

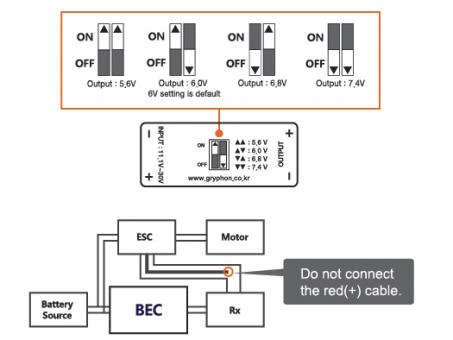

■SETUP OUTPUT VOLTAGE

 You can either use the DIP switch on the back of the
GSR-3030 to setup the output voltage.
