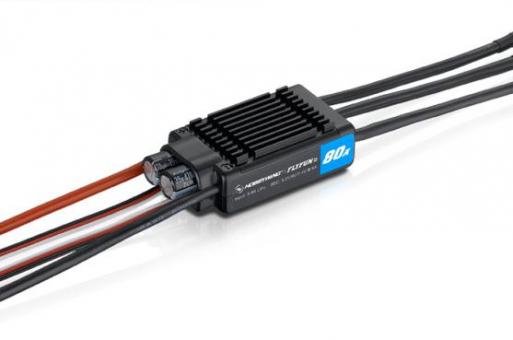

HobbyWing FLYFUN 80A V5 Brushless ESC Geschwindigkeitsregler mit BEC für RC Modelle
DEO Technology / Active Freewheeling
The DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
● Rapider and smoother throttle response, better stability and flexibility during flight.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature, more reliable operation.
Soft Start-ups & Reverse Brake
New soft start-up modes are applicable to regular propeller aircraft and
EDF aircraft with different sizes. With Reverse Brake mode enabled when
landing can effectively shorten the sliding distance of the aircraft to
simulate the landing of a real aircraft (within a super short-distance).
Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode
are also available; the brake amount is adjustable in normal brake mode
while in proportional brake mode, the brake force will be automatically
allotted on the basis of the position of radio throttle stick.
High-power BEC
High-power switch-mode BEC with continuous/peak current of
8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows
users to have more electronic devices or devices with higher power
like servo, flight controller, and on-board light on their aircraft.
Multiple Protections
Multiple protection features include start-up,
over-current, ESC thermal, capacitor thermal,
overload, throttle signal loss (or Fail Safe),
and abnormal input voltage effectively
prolongs the service life of the ESC.
New Design & Great performance
New design brings exquisite look and good heat-dissipating performance.
Imported components and the PCB (printed circuit board) with extremely
low impedance adopted by the ESC guarantee great current endurance,
excellent performance and high reliability. The ESC is available in
high-voltage/regular version with different Amps.
Multiple Programmable Parameters
Multiple programmable parameters for setups of different fixed-wing
aircraft are adjustable via transmitter or Hobbywing LED program box.
