Multi-Rotor System

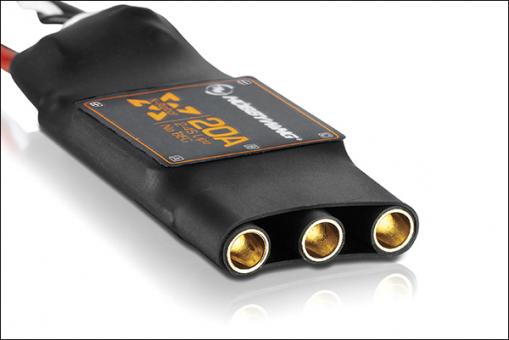

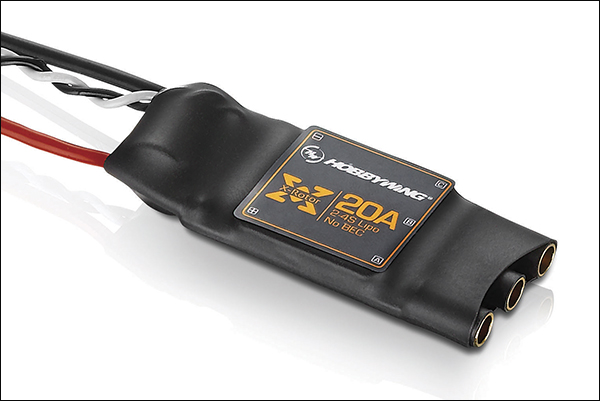

XRotor-20A

1 Features
1.1 Special core program for multi-rotor controllers greatly improves throttle response.
1.2 Specially optimized software for excellent compatibility with disc-type motors.
1.3 All settings except the timing are preset, making usage simple, highly intelligent and adaptive.

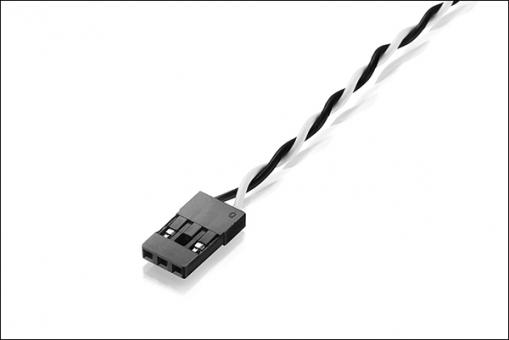

1.4 The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
1.5 Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
1.6 Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
1.7 MOSFET with extra-low resistance brings high performance and great current endurance.

Specifications:
- Continuous current: 20A
- Burst current: 30A@10S
- No BEC output
- Battery: 3-4S
- Weight: 14g
- Dimension: 52.4*21.5*7mm
- Suit for 330-450mm wheelbase multicopters
