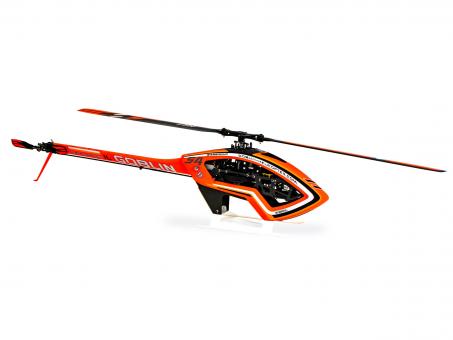

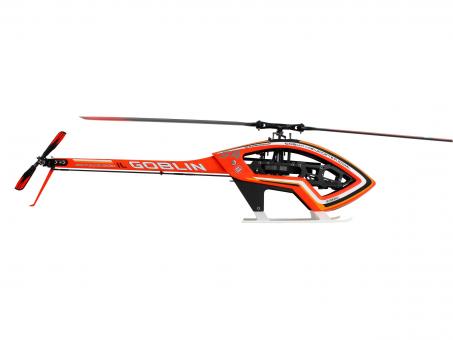

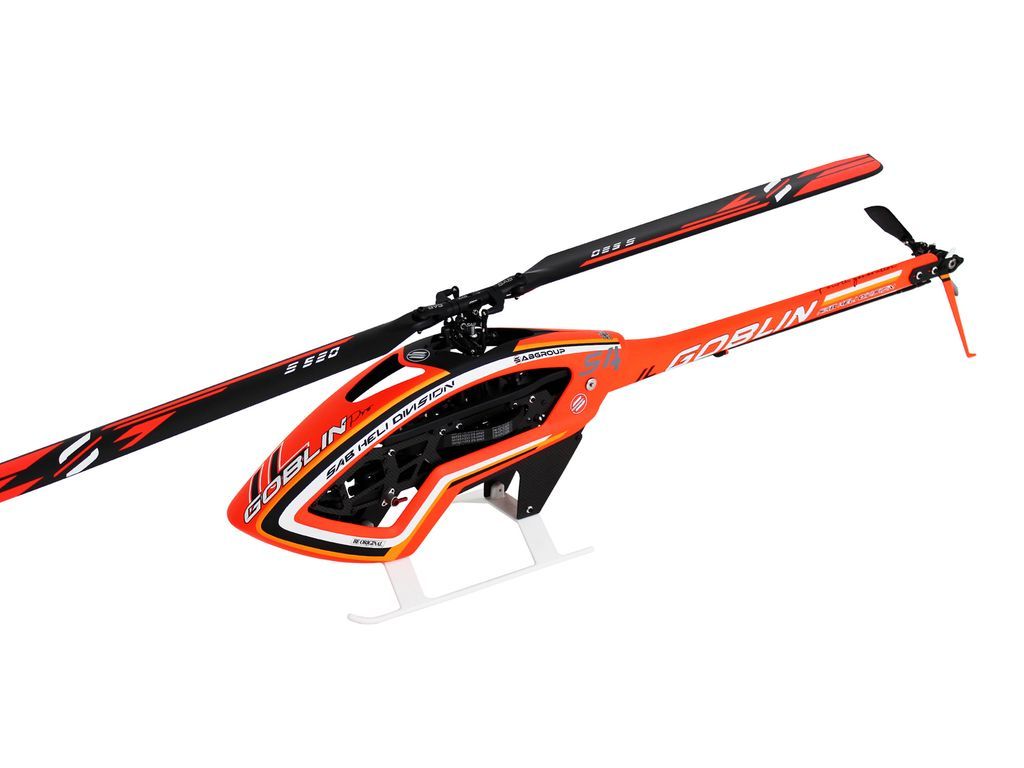

ILGOBLIN PRO 520 ORANGE
Developed based on the well proven Goblin RAW 500, the ilGoblin 520 brings many improvements to the platform:
- ilGoblin Pro Canopy/Boom shape
- New, stronger one way bearing

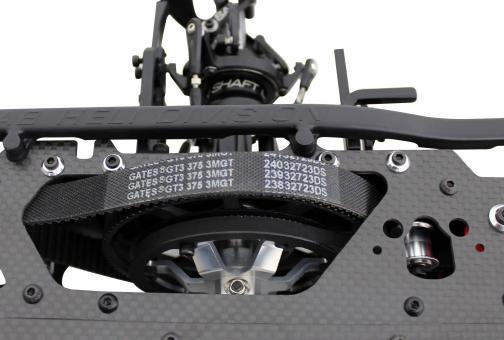

- New, stronger motor belt transmission

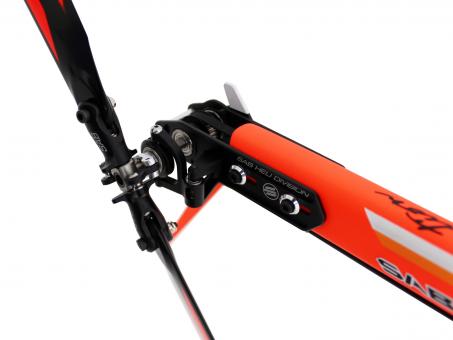

- New, smoother tail belt transmission
- Full Size tail servo compatible
- 520mm main blades/82mm tail blades
The model supports a rear-inserting battery tray, allowing you to install batteries without ever removing the canopy.
Specifications:
AIRFRAME weight: 1894 gr (no blades, no battery, no electronics)
Main rotor diameter: 1220 mm (with 520 mm main blades)
Main blade length: 480 to 530mm
Tail rotor diameter: 222 mm (with 82 mm tail blades)
Tail blade length: 80 to 85 mm
Cyclic Servos: Mini size 35mm
Tail Servo: Mini size 35mm/Standard size 40mm
Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
Tail Rotor Ratio: 3.88.1
Main shaft: 8 mm, Tail shaft: 5 mm
Molded carbon tail boom
Typical motor: 6S, 800/900 KV
Battery room: 48x48x150mm
KIT Includes:
• 17T motor pulley (other pulley sizes available).
• 1 battery tray with integrated connectors.
• S520 Orange (520 mm main blades).
• S82 Orange (82 mm tail blades).
