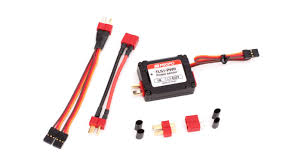

JR Telemetry Sensor Current/Voltage/Capacity/Power TLS1-PWP
Features:
- Measuring V, Amp, W and power consumption
- For flight packs up to 18V at a maximum load of 80A
- Compact aluminum heat sink case
- Deans Ultra Plug Input and Output connectors
- Includes receiver connection and battery extension harness
- High-visibility LED for operation confirmation
- Easy installation
The TLS1-PWR Electric Power Sensor is capable of measuring voltage, current, peak current, watts and total power consumption from flight packs as large as 18V at a maximum load of 80A. Intuitive radio setup and provided detailed hardware installation instructions help simplify installation and operation.
JR Dual Modulation Spectrum System (DMSS) 2.4GHz protocol offers a secure radio link that combines DSSS and FHSS capabilities into a wide-band transmission system that includes high-speed response and high resistance against RF noise. Another outstanding benefit is the JR bi-directional DMSS communication system and the real-time telemetry information it delivers. Receiver voltage telemetry is standard with every DMSS receiver, and add-on sensors will give you real time feedback of information from your model such as the RPM of an aircraft propeller or helicopter rotor blades, temperature and altimeter readings. Especially designed for the latest telemetry enabled JR radio control sets, including the XG6, XG8 and XG11, these easy to fit sensors will give you in-flight information from critical parts of your model. The lightweight sensors you choose can connect directly to the main DMSS receiver through a Y-harness or in series via the DMSS Telemetry Adapter (TLS1-ADP).
